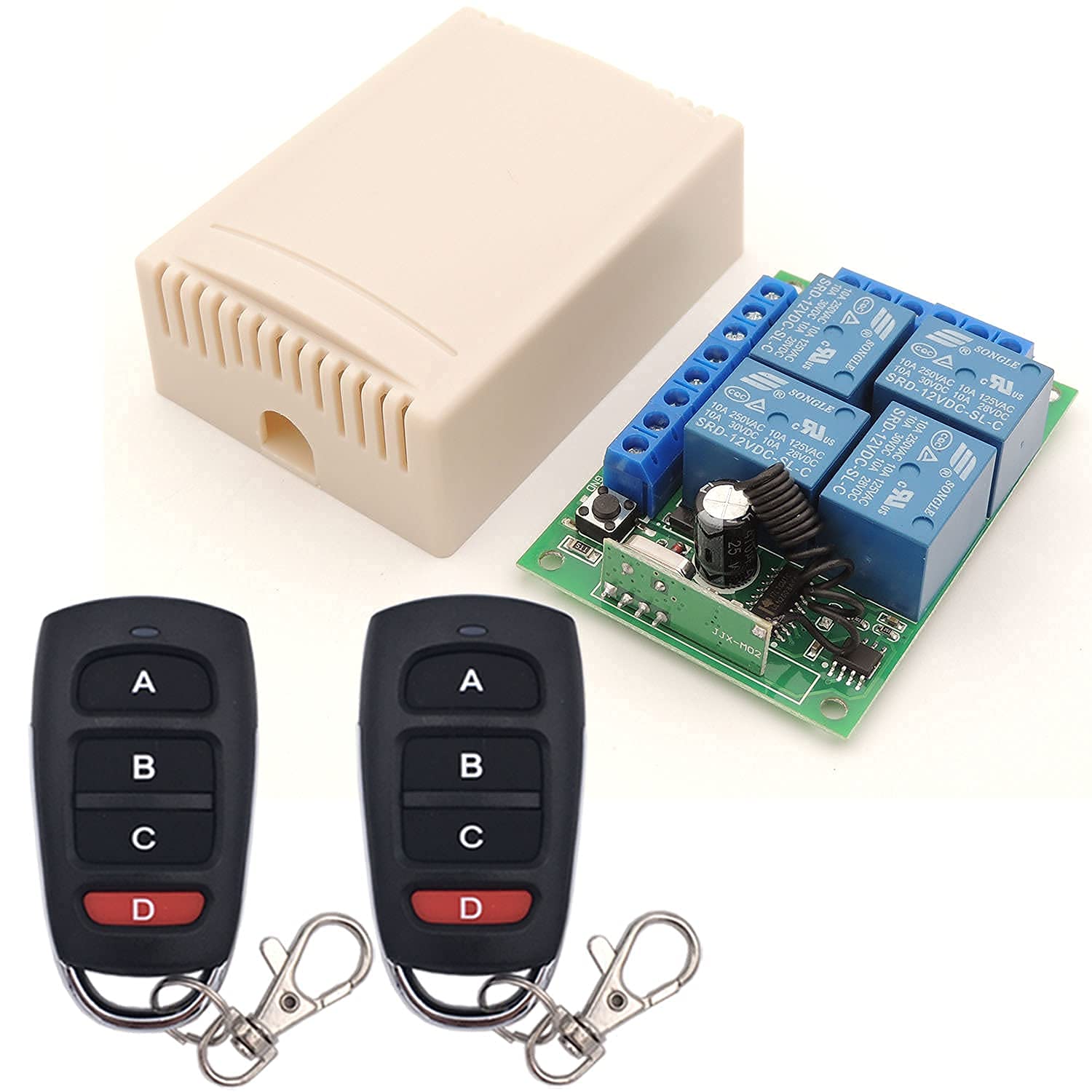

DC 12V Wireless Relay Remote Control Switch 433MHz RF 4 Channels Relay Receiver Board with 2 Transmitters for Truck Trunk Motor Garage Door Electric Lock, 3 Operating Modes

Product Type: Wireless Motor Controller
$27.08
$37.08
$27.08
Please hurry! Only 30000 left in stock
Subtotal: $27.08

AENTIA 433MHz Motor Remote Controller 4CH DC12V | AENTIA

DC 12V Wireless Relay Remote Control Switch 433MHz RF 4 Channels Relay Receiver Board with 2 Transmitters for Truck Trunk Motor Garage Door Electric Lock, 3 Operating Modes

$37.08 $27.08
AENTIA 433MHz Motor Remote Controller 4CH DC12V | AENTIA
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 2
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 3
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 4
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 5
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 6
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 7
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 8
AENTIA 433MHz Motor Remote Controller 4CH DC12V - View 9

DC 12V Wireless Relay Remote Control Switch 433MHz RF 4 Channels Relay Receiver Board with 2 Transmitters for Truck Trunk Motor Garage Door Electric Lock, 3 Operating Modes

$37.08 $27.08
Description
Description
x
Technical Specifications — SWITNEX 2201NB+WP10
Working Voltage DC 6V ~ 30V (wide range, 8V/12V/24V compatible)
Input / output voltage 1 ~ 250V
Max current 10A
RF frequency RF433
Working Temperature -30°C ~ +80°C
Indoor Control Range ≥50 meters (approx. 165ft)
Quiescent Current <5mA (ultra-low standby)
Support encoding
 1527 learning code
Receiving sensitivity > 97dbm
RF working mode ASK superheterodyne wireless reception
    • 【Super Design】 433MHz RF wireless remote control. Stable and reliable performance with high reception sensitivity (> 97dBm) Radio frequency signal transmission. You can remotely control each machine connected to the relay receiver via the transmitter. Strong signal can pass through walls, floors, doors, etc. It can be controlled within 50 meters in open area. The chip code is learning code EV1527 which makes the system more secure.

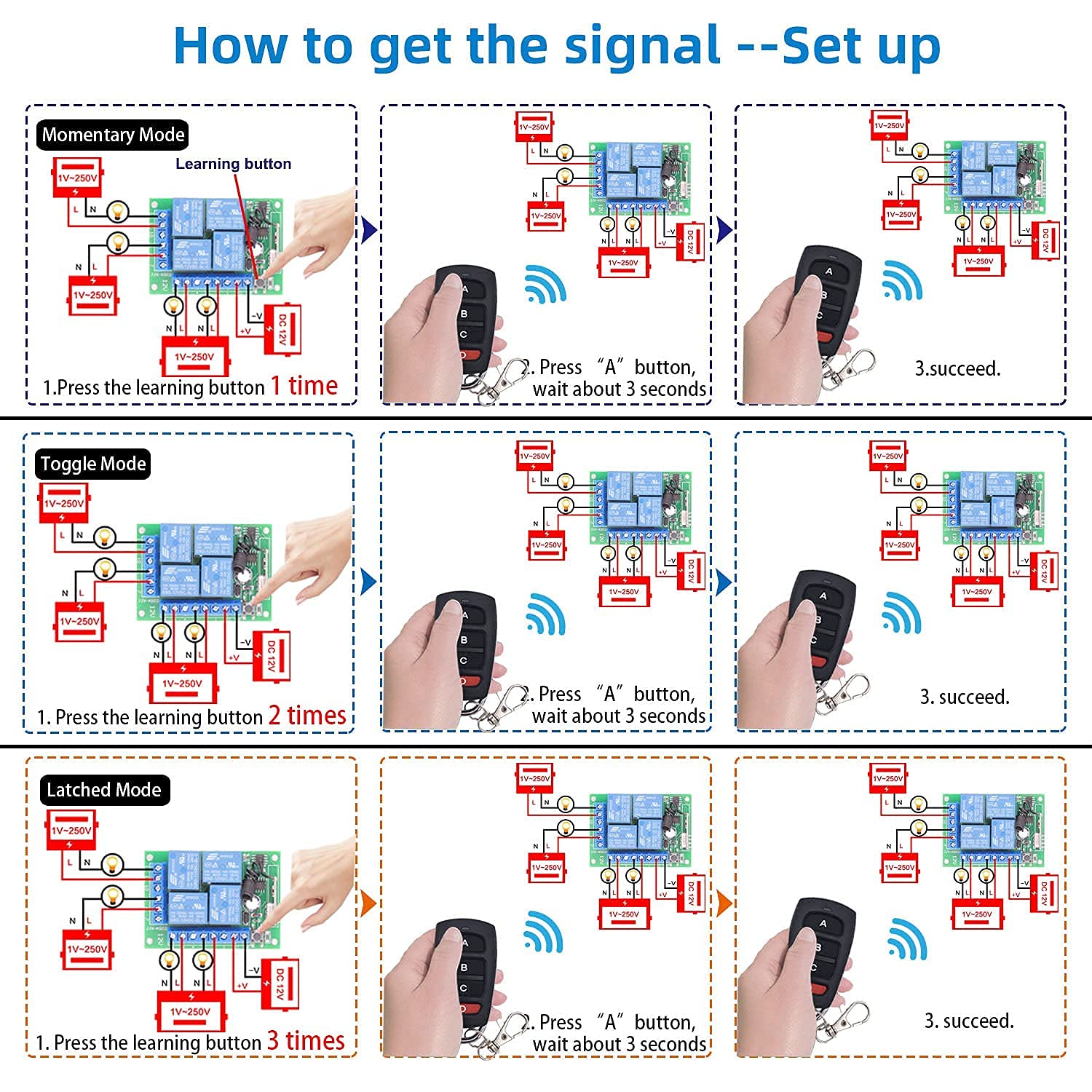

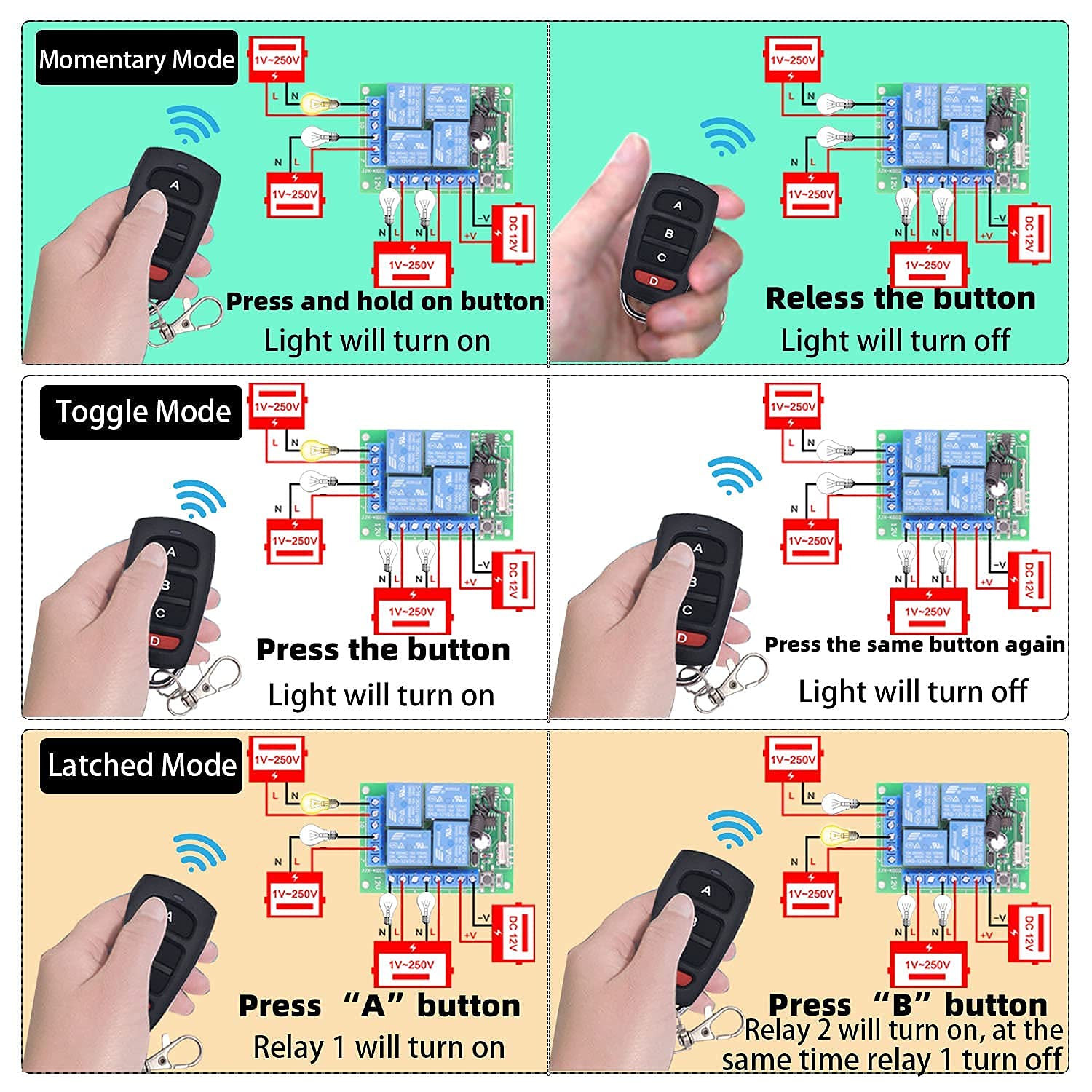

    • 【Easy to Use】Extremely easy to set up and reset. There are 3 operating modes (momentary/toggle mode) that can be configured. You can easily configure yourself according to your request. Product operating mode is adjustable. This item has already been configured in toggle mode. It can also be configured in mix mode. Such as 2 channels in momentary mode and 2 channels in toggle mode.

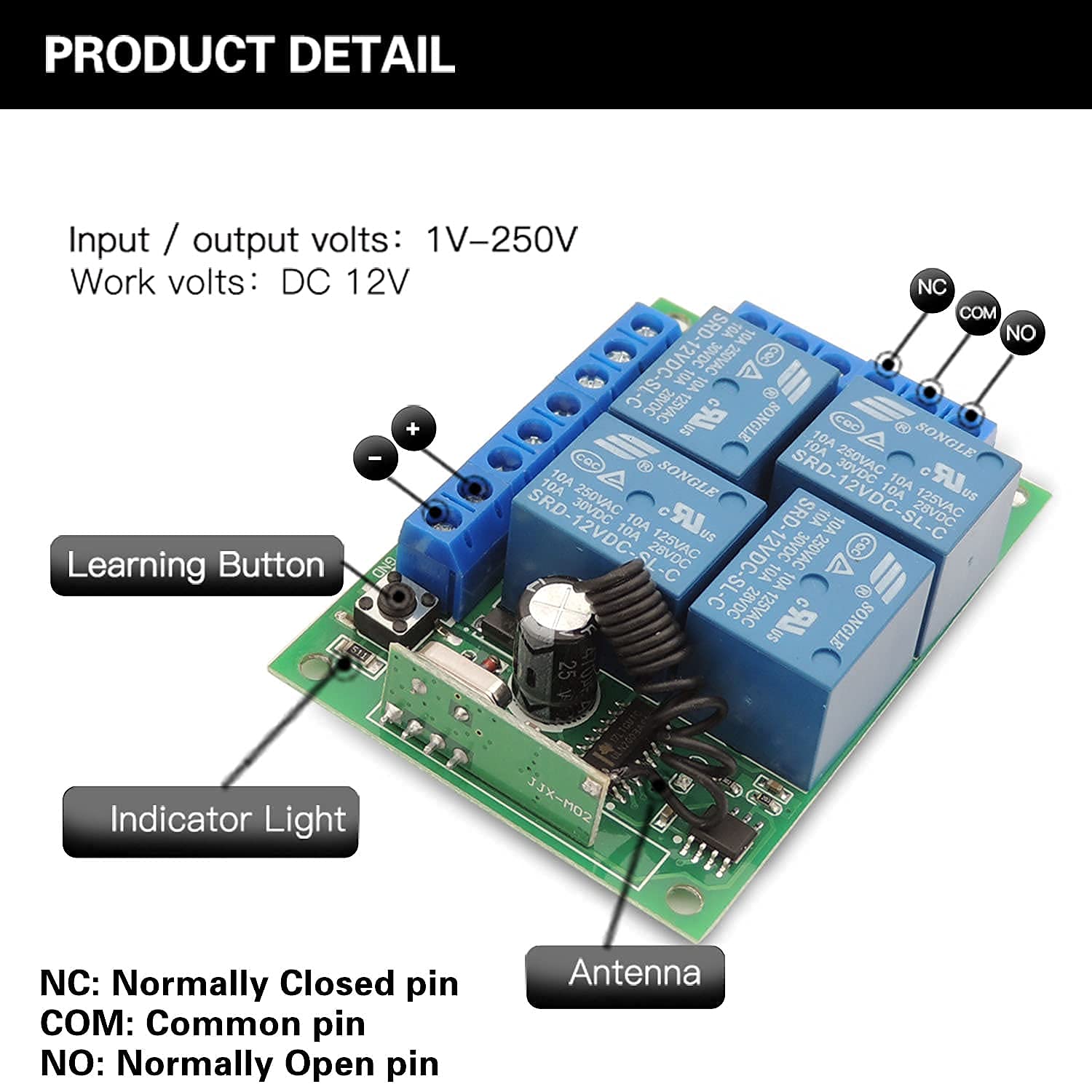

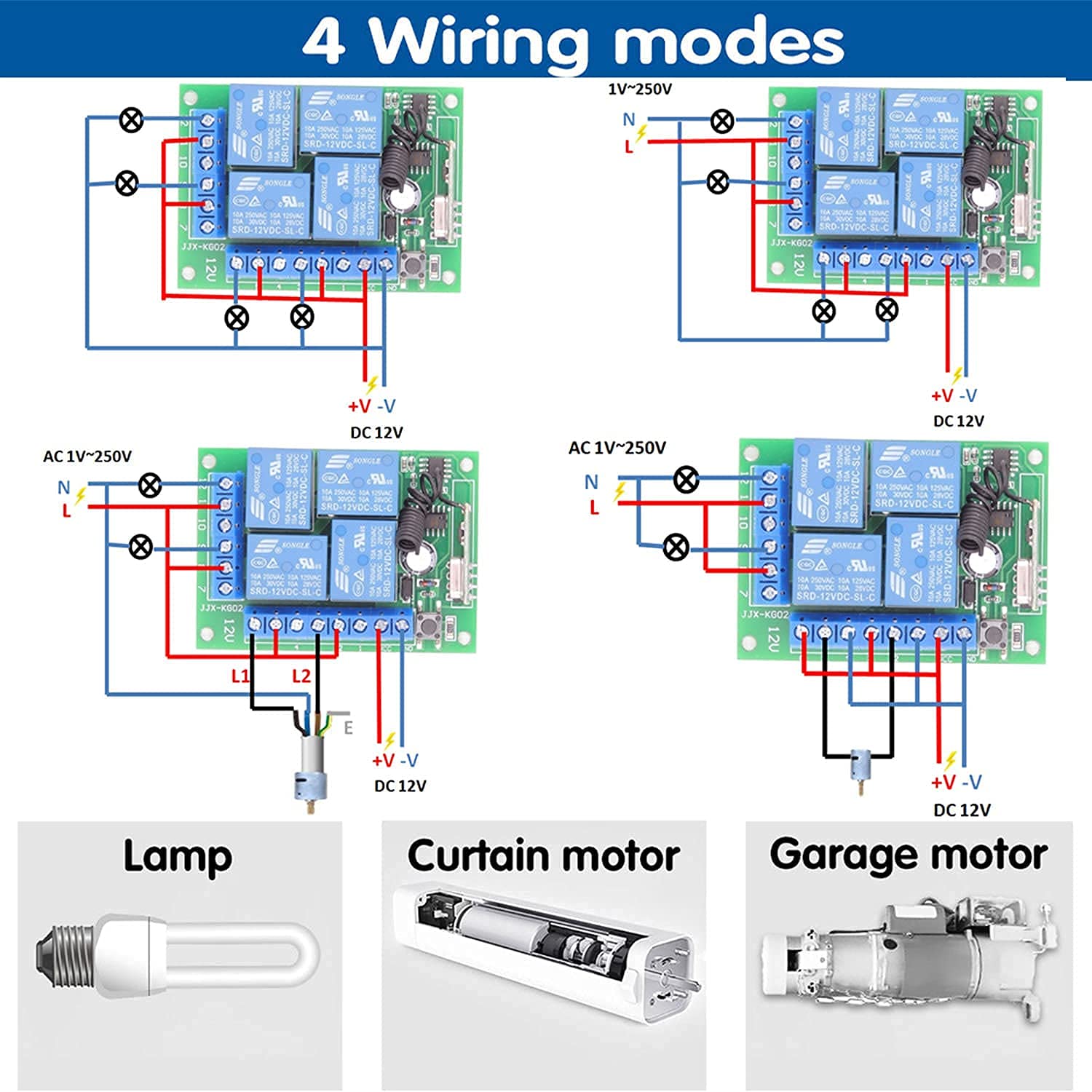

    • 【More Flexibility】This receiver contains 4 relays and there are 3 terminals (normally open, common, normally closed) for each relay. These 4 relays are independent, so you can control each of them independently. Each receiver can store about 20 transmitters. And one transmitter can control multiple receivers. For example, you can use two relays to control the station door and the other two to control the lights.
    • 【Quality assurance】 High quality relay can be used more than 100,000 times. Let this product more durable and stable to use. The high power blue terminal can withstand a current of 10A, so that this product can have a good effect even when the current is unstable.

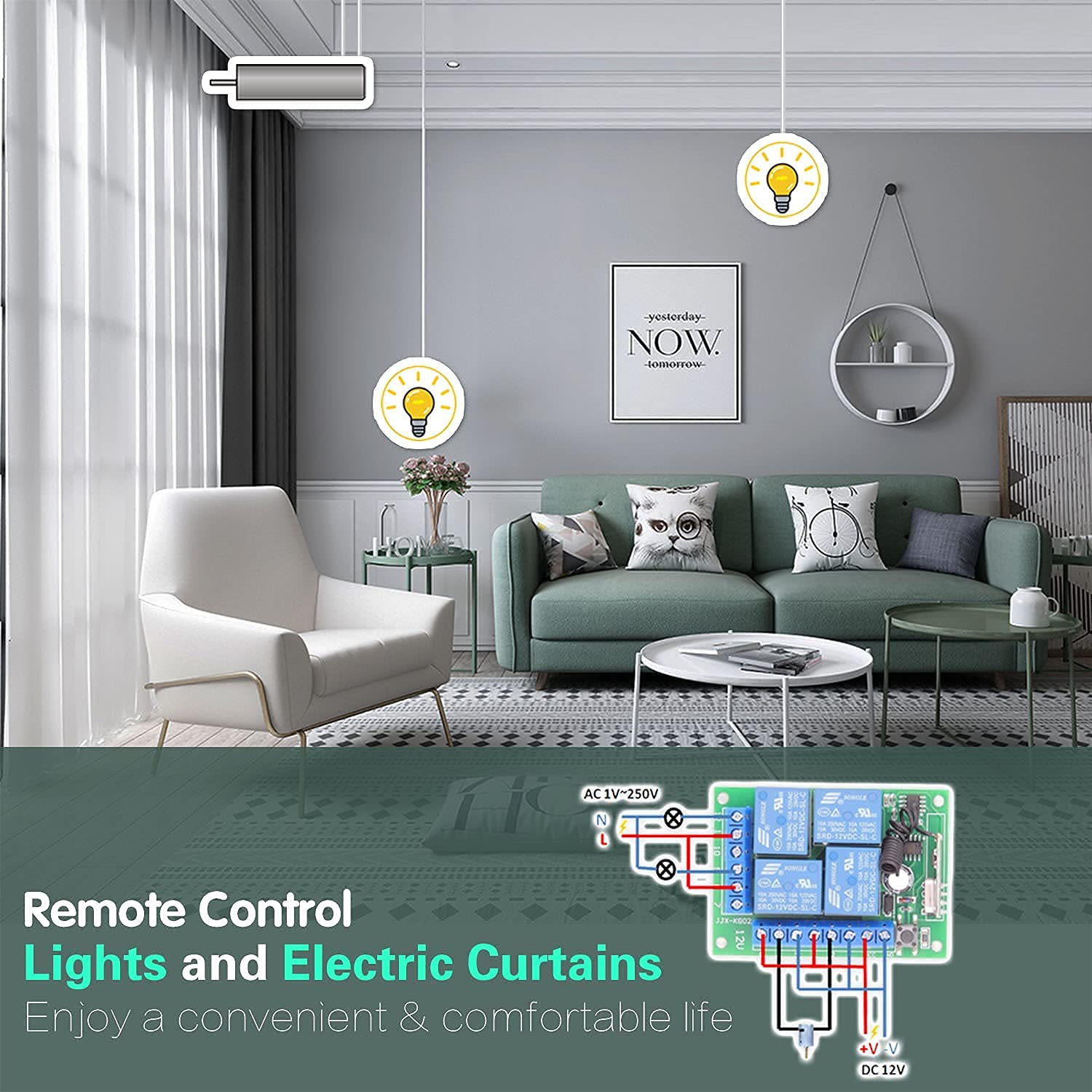

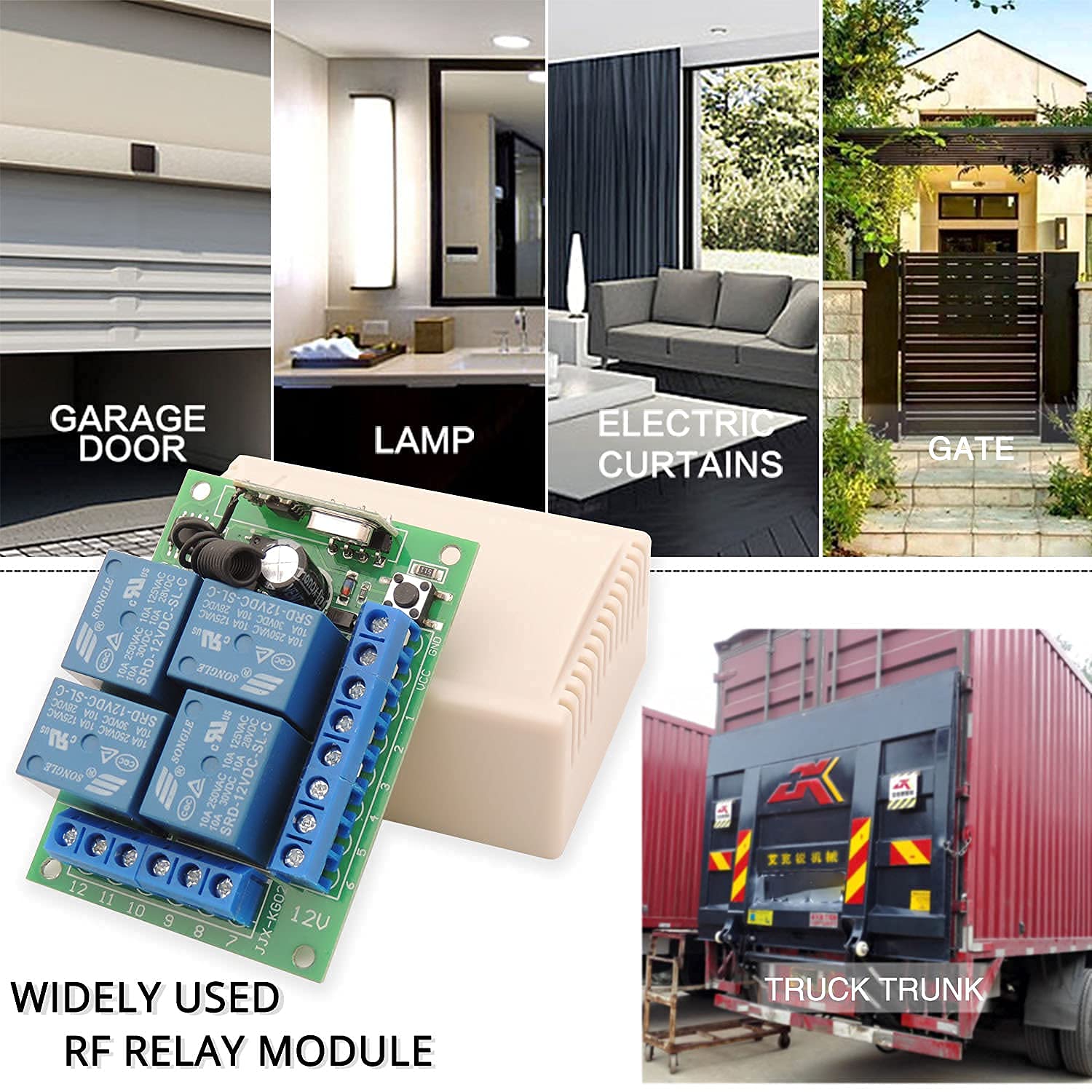

    • 【Wide Application】Products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can remotely use each device connected to the receiver relay via the remote control. Such as: truck trunk, garage door, electric door, shutter door, extension door and electric curtain, fan, lamp, lighting, ventilation device, signal transmission and so on.

    🚚
